WPF: Creation of Text Labels for 3D SceneBy Maciej ZbrzeznyAn article on creation of text labels for 3D scenes using WPF |
Some time ago, I started working on my application that takes the advantages of 3D graphics to display some results. I am .NET developer so I have chosen Windows Presentation Foundation (WPF) as my framework to create 3D graphics. I have to admit that this is powerful library that allows to create 3D graphics quite easy. It is not hard to understand how to create a 3D scene using sets of triangles. What is more, many articles describe how to do it. I encountered some problems when I started adding some text to my 3D scene. I think that this article may help other developers to choose the best way of writing text on a 3D scene.
Let's start, our goal is to add some text labels to the 3D scene. We have at least two approaches:
The first approach is based on the creation of a 3D object in the scene (typically it is a rectangle) and writing text on it (it can be achieved using the brush made from text). The sample result is showed in the picture below:
The second approach is based on layers. The bottom layer is Viweport3D
and the top layer is Canvas
. The top layer is transparent and overlays
the Viewport3D
. This approach uses TexBlock
s that are
members of the Canvas
but the 2D location depends on the location in
3D space. The picture below presents that approach:

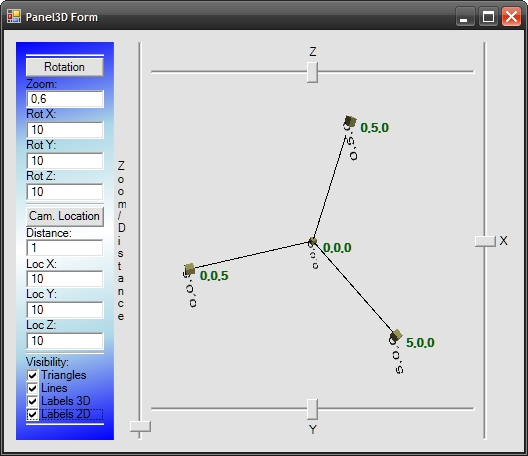

Of course, both approaches have some advantages and disadvantages. The 3D labels based on the first approach are more useful when the text is a part of the scene. The labels based on the second approach are more readable (but the solution is more complex). The picture below shows both approaches:
The sample code draws the coordinate system and some labels on it. The scene could
be rotated using the sliders. Checkbox
es from the left pane allow to
switch on / switch off the visibility of elements of the scene (especially labels
2D and 3D). I do not want to go into detail as to how this application is created.
I want to focus on the two approaches mentioned previously.
To illustrate how to create a label in 3D, I am going to describe how to create
the function: CreateTextLabel3D
. This function is going to be responsible
for returning the ModelVisual3D
object that represents the label in
3D space. Such a function has the following declaration:
///
<summary>
/// Creates a ModelVisual3D
containing a text label.
///
</summary>
///
<param
name="text">The string to
be drawn</param>
///
<param
name="textColor">The color
of the text.</param>
///
<param
name="isDoubleSided">Visible
from both sides?</param>
///
<param
name="height">Height of the
characters</param>
///
<param
name="basePoint">The base
point of the label</param>
///
<param
name="isBasePointCenterPoint">if
set to <c>true</c> the base point
/// is center point
of the label.</param>
///
<param
name="vectorOver">Horizontal
direction of the label</param>
///
<param
name="vectorUp">Vertical
direction of the label</param>
///
<returns>Suitable
for adding to your Viewport3D</returns>
///
<remarks>Two
vectors: vectorOver and vectorUp are creating the surface
/// on which we
are drawing the text. Both those vectors are used for
/// calculation
of label size, so it is reasonable that each co-ordinate
/// should be 0
or 1. e.g. [1,1,0] or [1,0,1], etc...</remarks>
public static ModelVisual3D CreateTextLabel3D( string text, Brush textColor,
bool isDoubleSided, double
height, Point3D basePoint, bool isBasePointCenterPoint, Vector3D vectorOver,
Vector3D vectorUp);
TextBlock
that allows us to create a label:
TextBlock textblock = new TextBlock(new Run(text));
textblock.Foreground = textColor; //
setting the text color
textblock.FontFamily = new FontFamily("Arial"); //
setting the font to be used
TextBlock
created in the previous step:
DiffuseMaterial mataterialWithLabel = new DiffuseMaterial();
// Allows the application
of a 2-D brush,
// like a SolidColorBrush
or TileBrush, to a diffusely-lit 3-D model.
// we are creating the
brush from the TextBlock
mataterialWithLabel.Brush = new VisualBrush(textblock);
//calculation
of text width (assuming that characters are square):
double width = text.Length * height;
// we need to find the
four corners
// p0: the lower left corner;
p1: the upper left
// p2: the lower right;
p3: the upper right
Point3D p0 = basePoint;
// when the base point
is the center point we have to set it up in different way
if(isBasePointCenterPoint)
p0 = basePoint - width / 2 * vectorOver - height / 2 * vectorUp;
Point3D p1 = p0 + vectorUp * 1 * height;
Point3D p2 = p0 + vectorOver * width;
Point3D p3 = p0 + vectorUp * 1 * height + vectorOver * width;
// we are going to create
object in 3D now:
// this object will be
painted using the (text) brush created before
// the object is rectangle
made of two triangles (on each side).
MeshGeometry3D mg_RestangleIn3D = new MeshGeometry3D();
mg_RestangleIn3D.Positions = new Point3DCollection();
mg_RestangleIn3D.Positions.Add(p0); //
0
mg_RestangleIn3D.Positions.Add(p1); //
1
mg_RestangleIn3D.Positions.Add(p2); //
2
mg_RestangleIn3D.Positions.Add(p3); //
3
// when we want to see
the text on both sides:
if (isDoubleSided)
{
mg_RestangleIn3D.Positions.Add(p0); //
4
mg_RestangleIn3D.Positions.Add(p1); //
5
mg_RestangleIn3D.Positions.Add(p2); //
6
mg_RestangleIn3D.Positions.Add(p3); //
7
}
mg_RestangleIn3D.TriangleIndices.Add(0);
mg_RestangleIn3D.TriangleIndices.Add(3);
mg_RestangleIn3D.TriangleIndices.Add(1);
mg_RestangleIn3D.TriangleIndices.Add(0);
mg_RestangleIn3D.TriangleIndices.Add(2);
mg_RestangleIn3D.TriangleIndices.Add(3);
// when we want to see
the text on both sides:
if (isDoubleSided)
{
mg_RestangleIn3D.TriangleIndices.Add(4);
mg_RestangleIn3D.TriangleIndices.Add(5);
mg_RestangleIn3D.TriangleIndices.Add(7);
mg_RestangleIn3D.TriangleIndices.Add(4);
mg_RestangleIn3D.TriangleIndices.Add(7);
mg_RestangleIn3D.TriangleIndices.Add(6);
}
// texture
coordinates must be set to
// stretch the TextBox
brush to cover
// the full side of the
3D label.
mg_RestangleIn3D.TextureCoordinates.Add(new Point(0, 1));
mg_RestangleIn3D.TextureCoordinates.Add(new Point(0, 0));
mg_RestangleIn3D.TextureCoordinates.Add(new Point(1, 1));
mg_RestangleIn3D.TextureCoordinates.Add(new Point(1, 0));
// when the label is double
sided:
if (isDoubleSided)
{
mg_RestangleIn3D.TextureCoordinates.Add(new Point(1, 1));
mg_RestangleIn3D.TextureCoordinates.Add(new Point(1, 0));
mg_RestangleIn3D.TextureCoordinates.Add(new Point(0, 1));
mg_RestangleIn3D.TextureCoordinates.Add(new Point(0, 0));
}
ModelVisual3D
that we want to return:
ModelVisual3D result = new ModelVisual3D();
// we are setting the content:
// our 3D rectangle object
covered with material that is made of label
// (TextBox with text)
result.Content = new GeometryModel3D(mg_RestangleIn3D, mataterialWithLabel); ;
return result;
This solution is much more complicated and it is hard to prepare one function that deals with all tasks.
First of all, we have to create two layers:
Viewport3D
as the bottom layer Canvas
as the top layer The XAML code below presents a sample of two overlaid layers:
<Grid ClipToBounds="True">
<Viewport3D Name="mainViewport" ClipToBounds="True" Grid.Column="0" Grid.Row="0">
<Viewport3D.Camera>
<PerspectiveCamera FarPlaneDistance="100" LookDirection="-11,-10,-9" UpDirection="0,1,0"
NearPlaneDistance="1" Position="11,10,9" FieldOfView="70" />
</Viewport3D.Camera> <ModelVisual3D> <ModelVisual3D.Content>
<DirectionalLight Color="White" Direction="-2,-3,-1" />
</ModelVisual3D.Content>
</ModelVisual3D>
</Viewport3D> <Canvas Name="mainViewportCanvas" ClipToBounds="True"
Grid.Column="0" Grid.Row="0">
</Canvas>
</Grid>
The second task is localization of the point from 3D space on our overlaid canvas. To transform the location, we can use the following function:
public static Point Get2DPoint(Point3D p3d, Viewport3D vp)
{
bool TransformationResultOK;
Viewport3DVisual vp3Dv = VisualTreeHelper.GetParent(
vp.Children[0]) as Viewport3DVisual;
Matrix3D m = MathUtils.TryWorldToViewportTransform
(vp3Dv, out TransformationResultOK);
if (!TransformationResultOK) return new Point(0, 0);
Point3D pb = m.Transform(p3d);
Point p2d = new Point(pb.X, pb.Y);
return p2d;
}
Note that this function uses function TryWorldToViewportTransform
from
3D Tools package (available here):
_3DTools.MathUtils.TryWorldToViewportTransform
.
The next task is creation and localization of the TextBlock
:
UIElement IModelVisual3D.GetUIElement
(ModelVisual3DFilter FilterSettings, Viewport3D DestinationViewport3D)
{
if (FilterSettings.Texts2D)
{
TextBlock tb = new TextBlock();
tb.Text = Description;
Point p2d = Panel3DMath.Get2DPoint(this.Point3D, DestinationViewport3D);
Canvas.SetTop(tb, p2d.Y);
Canvas.SetLeft(tb, p2d.X);
return tb;
}
else
return new UIElement();
}
The last thing is adding the TextBlock
(created before) to our canvas.
this.mainViewportCanvas.Children.Add(element.GetUIElement(filter,mainViewport));
